Ozone (O3) is created by passing oxygen through a specialized ozone generator inside the trailer. This generator uses high-voltage electrical discharge to convert oxygen molecules into ozone. The resulting ozone gas is highly reactive and capable of rapidly oxidizing contaminants, bacteria, viruses, and other harmful microorganisms found in water.

Ozone Generation: The ozone generator inside the trailer creates pure ozone gas using oxygen from the atmosphere or supplied cylinders. This gas is then infused into the water, where it quickly interacts with pathogens and organic matter.

Production Efficiency: Our systems are designed to produce ozone at high efficiency while maintaining a compact, mobile footprint. The generated ozone gas is mixed with the water in a precise and controlled manner to ensure maximum disinfection.

The water treatment process begins when untreated water is pumped into the ozone treatment unit. This is how the ozone infusion and disinfection process works:

Water Intake: The untreated or “raw” water is drawn from the pipeline or water system needing treatment. This water can be from newly installed pipelines or from networks undergoing maintenance.

Ozone Infusion: The ozone is injected into the water through a diffuser or contact chamber, where it mixes with the water and begins the disinfection process. The ozone molecules bind with pathogens, bacteria, and other contaminants in the water. This reaction oxidizes the contaminants, rendering them inert or harmless.

Rapid Action: Ozone is known for its speed and efficiency—it acts far quicker than chlorine and other traditional disinfectants. The reaction between ozone and contaminants is almost instantaneous, requiring less contact time, which means faster pipeline commissioning and reduced downtime.

Each of our ozone treatment trailers is equipped with state-of-the-art sensors and real-time monitoring systems to ensure that the disinfection process is carried out with precision and within regulatory standards.

Real-Time Data: Throughout the treatment process, key parameters such as ozone concentration, flow rate, and contact time are monitored and displayed on the control panel. This allows for constant oversight and ensures that all treatment variables are adjusted to meet specific water quality standards.

Automated Control: The system automatically adjusts the ozone dosage based on factors such as water quality and flow rate. This ensures that the treatment is not only effective but also energy-efficient—optimizing ozone use to match the specific needs of each project.

Remote Monitoring Capabilities: Our mobile ozone units can also be equipped with remote monitoring capabilities for real-time tracking from a centralized location. This feature ensures that water treatment operators can oversee the treatment process remotely and receive updates on system performance and water quality.

After ozone has done its job in disinfecting the water, it naturally breaks down into oxygen (O2), leaving no toxic by-products or chemical residues behind. This is one of the most compelling reasons why ozone is a preferred solution over traditional disinfectants like chlorine.

Ozone Breakdown: Ozone has a short half-life and decomposes rapidly, leaving only pure oxygen. As the treated water flows out of the unit, it is free from any residual ozone, making it safe for both consumption and environmental discharge.

Safety and Environmentally Friendly: Since ozone leaves no harmful by-products like chlorine or chloramines, it ensures that the treated water meets environmental regulations and maintains the highest quality standards for public health and safety.

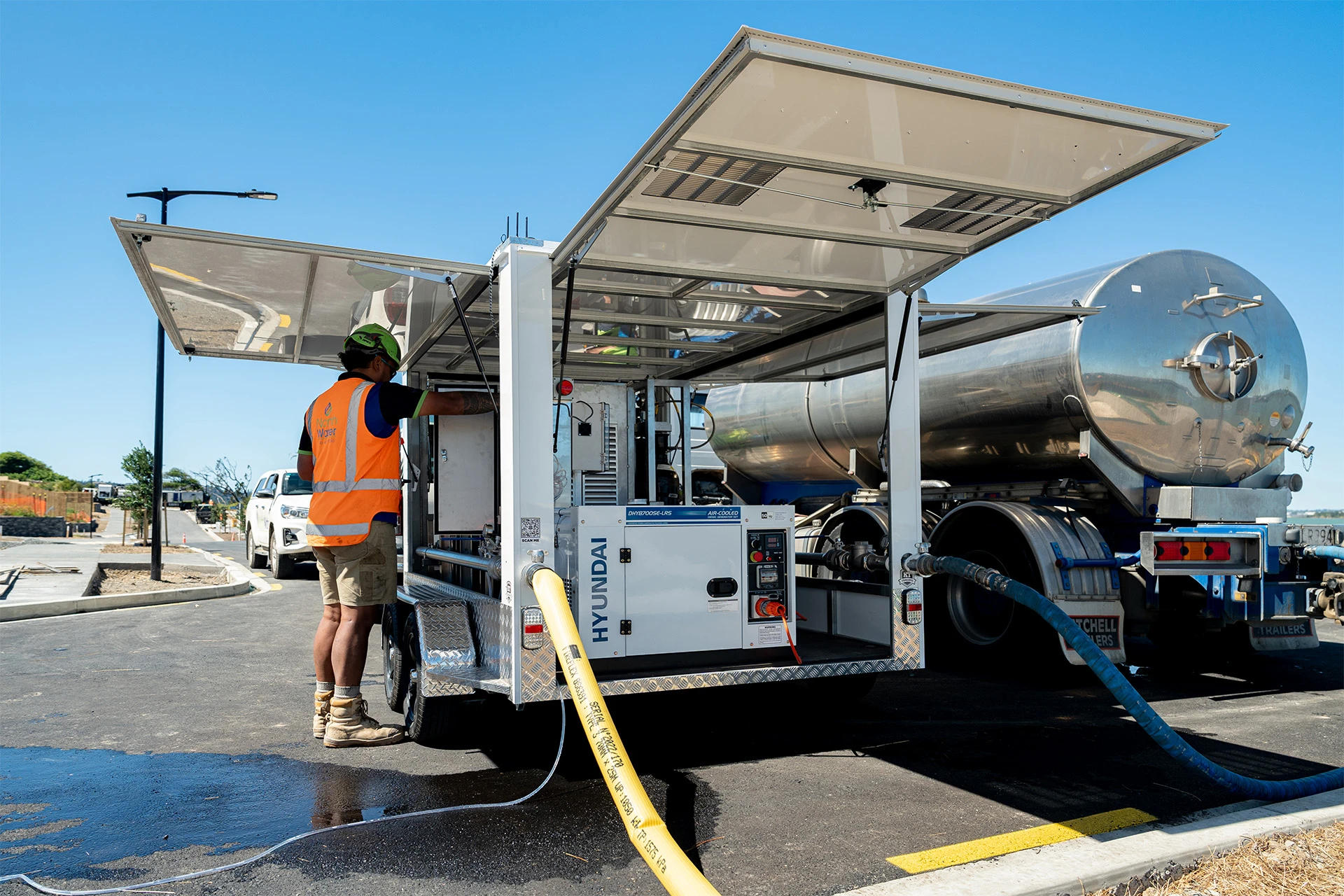

The beauty of our Mobile Ozone Trailers is their flexibility and adaptability. They are designed to be quickly deployed to remote or urban locations, making them ideal for a range of applications, including:

New Pipeline Commissioning: Ozone treatment ensures that newly laid pipelines are disinfected before they are commissioned for use. This is particularly important in drinking water infrastructure, where contamination can have significant health consequences.

Emergency Disinfection: In cases of emergency contamination or when a rapid response is needed, our mobile units can be deployed swiftly to disinfect water systems and restore safety.

Scheduled Maintenance: Regular maintenance of water networks may require ongoing disinfection, and our ozone units can be integrated into any pipeline maintenance schedules to provide continuous safe water supply.

Scalable to Project Needs: Our ozone treatment units can be customized to handle small-scale or large-scale disinfection tasks, ensuring that they can scale to meet the needs of both small municipal projects and large regional networks.

One of the standout benefits of our ozone trailer technology is its sustainability and cost- effectiveness:

No Chemical Costs: Traditional disinfection methods, such as chlorine, involve recurring chemical purchases, transportation, and disposal costs. With ozone, there are no chemicals involved, significantly reducing ongoing costs.

Lower Operational Costs: Ozone treatment requires fewer personnel and less time to complete, driving down operational costs and minimizing the resources needed for each project.

Sustainability: The absence of chemicals, the reduced need for hazardous waste disposal, and the energy-efficient design of the mobile units make our technology a more sustainable and environmentally responsible choice compared to traditional methods.
